CFL LiQiFlowMX®

CFL LiQiFlowMX® are premium high-flow, high-capacity filter cartridges designed for demanding industrial applications. Featuring a unique multi-layered construction, these cartridges offer exceptional dirt-holding capacity and low-pressure drop, minimising downtime and maximising operational efficiency. Specially selected polypropylene and glass filter media provide retention ratings of 0.5 to 100 microns, with BETA 5000 (99.98%) efficiency.

Find out More

Key features and benefits

High Flow Capacity

Delivers exceptional flow rates of up to 120 m³/hr per cartridge, optimising vessel size and reducing capital expenditure.

High Dirt Holding Capacity

Effectively captures contaminants, extending filter life and minimising maintenance frequency.

Long Service Life

Robust construction and high dirt-holding capacity contribute to extended service intervals, reducing operating costs.

Easy Change-Out

Integrated handles facilitate easy and safe cartridge replacement.

Absolute Retention

Designed to provide absolute filtration efficiency, achieving 99.98% retention of particles from 0.5 to 100 microns, ensuring high product purity and stringent contamination control.

Full Thermal Bonding

Eliminates the need for adhesives, ensuring cartridge integrity and minimising extractables.

Robust Construction

Provides excellent mechanical strength for demanding industrial environments.

Flexible Flow Direction

Can be configured for either in-to-out or out-to-in flow, depending on application requirements.

Book A Consultation With A CFL Expert

Applications

Process Water

Provides reliable filtration of process water, ensuring purity standards are met to support critical industrial processes and protect downstream equipment.

Amines and Glycols

Employed to filter amines and glycols, removing particulates and impurities that can impact performance and stability.

Speciality Chemicals

Utilised in the production and handling of speciality chemicals to ensure product purity, the protection of sensitive equipment and the removal of contaminants for ultrapure water supply.

Water Treatment

Used in a range of water treatment applications, such as municipal and industrial wastewater treatment, desalination and water injection, removing impurities to improve water quality.

Photochemistry

Removal of particulates in pre-reaction and post-reaction processes, such as catalysts and undissolved reagents.

Produced Water Treatment

The treatment of produced water from oil and gas operations, removing sand, silt and clay, prior to discharge or reinjection.

Work Over Fluids

Ensures high-quality filtration of workover fluids during oil and gas well interventions, well maintenance, and workover operations, minimising formation plugging and protecting sensitive completion and production equipment.

Effective filtration area

Polypropylene:

Up to 0.55 m² per 250 mm module

Glass fibre:

Up to 0.48 m² per 250 mm module

Technical specifications

Filtration media:

Glass Fibre or Polypropylene

Support/ Drainage:

Polypropylene

Hardware:

Polypropylene

Standard O-rings (SOE):

EPDM, Buna-N, Viton, Silicone

Retention Ratings:

0.5, 1, 3, 5, 10, 20, 40, and 100 microns (99.98% efficiency)

Recommended Flow Rates:

508 mm: Up to 40 m³/hr
1016 mm: Up to 80 m³/hr
1524mm: Up to 120 m³/hr

Recommended operating conditions

Maximum operating temperature:

80°C (176°F) @ 2.1 bar (30 psi) for standard materials. High-temperature options available

Maximum differential pressure:

4.8 bar (70 psi) @ 25°C (77°F)
2.1 bar (30 psi) @ 80°C (176°F)

Recommended changeout pressure:

2.4 bar (35 psid)

Industries we serve

Oil & Gas

LiQiFlowMX® cartridges are utilised in various oil and gas production stages, for produced water treatment, seawater treatment, injection water treatment and fresh water production.

Designed for the removal of solid particulate contaminants such as sand, silt, clay, iron oxides, calcium carbonate, barium sufate and metal oxides and marine organic matter, ensuring smooth and efficient process operations.

Water Treatment

Utilised in a number of water treatment applications, including municipal water treatment, industrial wastewater treatment, and desalination plants, effectively removing suspended solids, particulate matter, and other contaminants from water sources, ensuring clean and safe water production.

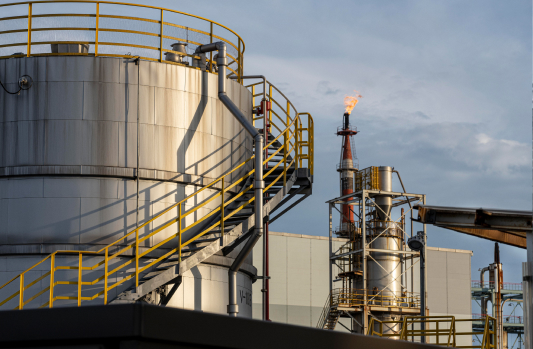

Refining

In refineries, LiQiFlowMX® is employed to treat numerous process streams, including crude oil, intermediate products, and finished fuels.
LiQiFlowMX® removes inorganic and organic solid particulate impurities such as sand, clay, silt, scale, catalyst fines, silica asphaltes and coke fines, ensuring product quality, and equipment integrity.

Bulk Chemicals

LiQiFlowMX® is suitable for the filtration of a range of chemicals in bulk production processes, removing solid particulate impurities from chemical feedstocks. Effective filtration is key to the protection of downstream equipment, and to ensure the consistent quality of final product.
